Belt Sander (10x330mm)

Chih Tai Y&S Co., Ltd.

No.20, Lane 70, Sec.5, Yang-Hai Rd., Fu-Hsing Hsiang, Changhua, Taiwan

Tel:886-4-7764112 7771377 Fax: 886-4-7771692

P.O.Box: 107 Lukang E-mail: chihtai@ms16.hinet.net

Item No.: CH191627

Belt Sander (10x330mm)

Specification:

* Wheel type: Steel

* Belt size: 10 x330mm (with 3pcs belts: #80, #100, #120)

* Free Speed: 16000rpm

* Overall length: 295mmL

* Air consumption: 4CFM

* Air Inlet(PT/NPT): 1/4”

* Air Hose (ID): 3/8”

* Weight: 0.95kgs

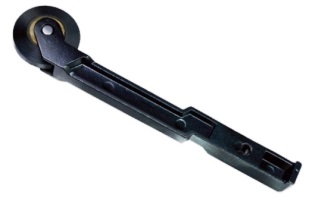

Optional belt arms:

Mode No.	Belt Arm Type	Application
CH191627-AA		Contact arm assy for belt wide 8& 10
CH191627-AD		Contact arm assy for belt wide 10& 12
CH191627-BB		Contact arm assy for belt wide 3
CH191627-BF		Contact arm assy for belt wide 8& 10
CH191627-BG		Contact arm assy for belt wide 3 & 5
CH191627-BH		Contact arm assy for belt wide 5 & 6
CH191627-CC		Contact arm assy for belt wide 10 & 12
CH191627-DE		Contact arm assy for belt wide 8 & 10

* * Also have a whole set-CH191627-K, included 7pcs belt arm and 3pcs belts( #80, #100, #120).
