H.V.L.P. Spray Gun

Item No.:CH181102-E

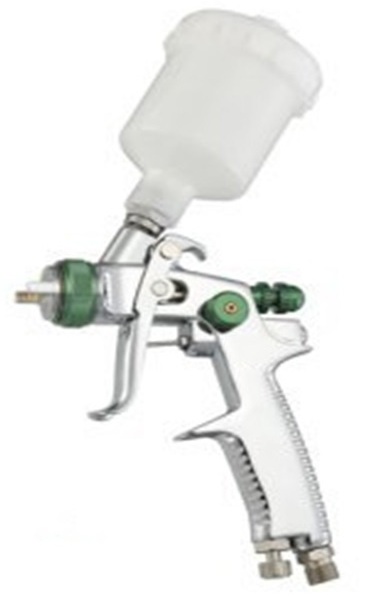

H.V.L.P. Spray Gun


Description:
* All wet parts are made by stainless steel
* Excellent atomization of both solvent and waterbased materials
* Used for spot repair to medium paint job
* Less pollution to environment, high transfer efficiency and save cost
* Small/lightweight and can reach hard accessible area.

* Optional Nozzle Size : 0.5mm, 0.8mm, 1.0mm, 1.2mm, 1.4mm

Specification:
* Fluid tip size: 1.0mm

* Air pressure: 2.04kg/cm2 (29psi / 2bar)
* Air inlet: 1/4”

* Fluid inlet: M10x1.0
* Air consumption: 115 L/min (4.1CFM)
* Weight:320g
* Capacity Of cup: 0.125L


¡@

¡@
