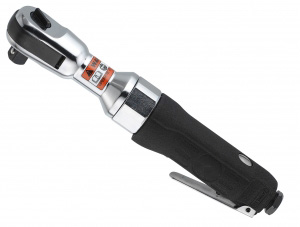

1/2"Dr. Air Ratchet Wrench (80Nm)



Item No.: CH141211-12

1/2"Dr. Air Ratchet Wrench (80Nm)

Description:

* Std. Bolt cap.: 10mm

* Free speed: 160rpm

* Torque: 80Nm (59Ft-lbs)

* Length: 254mm(10”)

* Weight: 1.2kgs(2.65lbs)

* Air consumption: 9.5cfm (240L/min)

* Air pressure: 90Psi (6.2bar)

* Noise: 91.4dB(A)

* Air inlet: 1/4”PT or NPT

* Air hose size: 3/8”(9.5mm)

¡@

¡@

¡@

¡@

¡@

¡@
