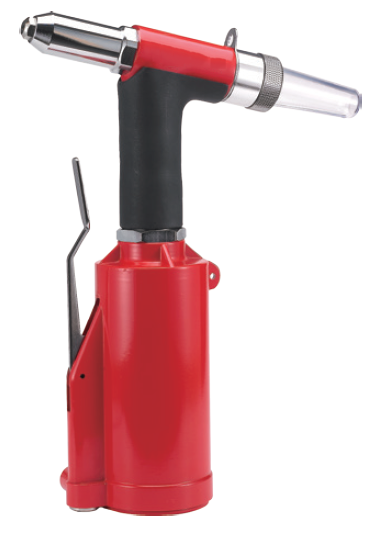

Air Hydraulic Riveter (no vacuum)

¡@

¡@

Item No.: CH1211366-A

Air Hydraulic Riveter (no vacuum)



Feature:

* Most versatile blind rivet tool line-sizes to satisfy and production need.

* Excellent value-dependable and cost effective

* Durable, light weight and portable

* Adjustable spent mandrel deflectors

* 3/16¡¨(4.8mm) rivet capacity in all materials



Specification:

* Traction power: 1983lbs (900kg)

* Stroke: 16mm (0.63¡¨)

* Working air pressure: 85-100psi (6-7kg/cm2)

* Tool dimensions: high-298mm, length-225mm, depth: 74mm, weight: 1.46kg

* Riveting capacity: 3/16¡¨(4.8mm), 5/32¡¨(4.0mm), 1/8¡¨(3.2mm)

¡@

¡@

¡@

¡@

¡@

¡@
