Item No.: CH1211340-I

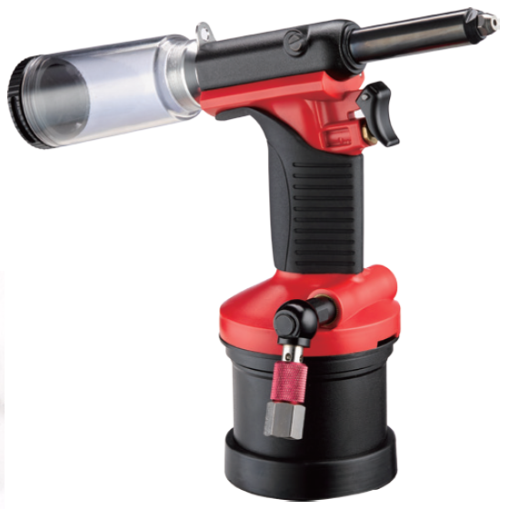

Air Hydraulic Riveter(Vacuum)

Feature:

* With Suction control switch

* Long Stroke (18mm)

* Set 5/32” (4.0mm) and 5/64”(2.0mm) standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications

* Durable, lightweight only 1.2kg

* Nail back twice as fast, the low pressure operating

Specification:
* Riveting capacity: 5/32”, 1/8”,3/32”, 5/64” (4.0, 3.2, 2.4,2.0 mm)
* Stroke: 17.8 m
* Working Air Pressure: 75 ~ 100 PSI (5.2 ~ 7 kg/cm²)
* Traction Power: 1300 lbs (590kg)
* Weight: 1.2kg
* Height: 245 mm
* Length of Placing Head: 280 mm
* Base Diameter: 96.5 mm
