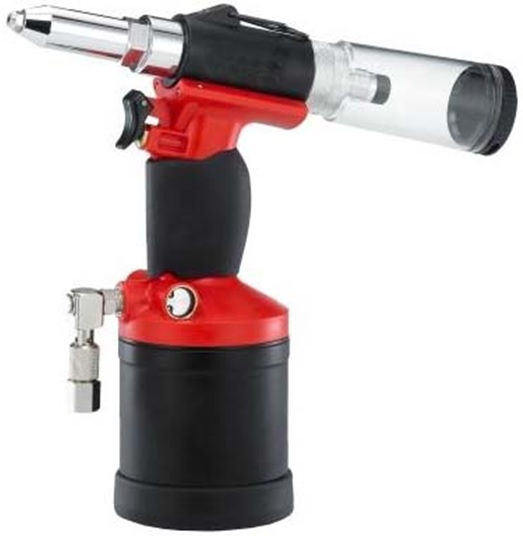

Air Hydraulic Riveter (Vacuum)

¡@

¡@

Item No.: CH121119
Air Hydraulic Riveter (Vacuum)
¡@

Feature:

* With Suction control switch

* Long Stroke (23.5mm)

* Set 3/16¡¨(4.8mm) and 3/32¡¨(2.4mm) structural Monobolt rivets, ¡§T¡¨ rivets and standard rivets-in all materials.

* Soft set shockless tools

* Mandrel collection bottle design allows for easy disposal of spent mandrels

* Heavy duty construction for rugged applications



Specification:
* Riveting capacity: 3/16¡¨, 5/32¡¨, 1/8¡¨,3/32 ¡§ (4.8, 4.0, 3.2, 2.4 mm)
* Stroke: 23.5 mm (0.925¡§)
* Working Air Pressure: 85 ~ 95 PSI (6 ~ 6.7 kg/cm2)
* Traction Power: 2000 lbs (908kg)
* Weight: 1.54kg
* Height: 270 mm
* Length of Placing Head: 290 mm
* Base Diameter: 96.5 mm



* Other available type:

-CH121119-I, which suction can¡¦t be tuned. To avoid artificial nails improper operation.

 -CH121119-N, no vacuum type

¡@

¡@
