Untwist Tool Cable Separator



Item No.: CH071733

Untwist Tool Cable Separator

Specifications:

Capacity: for wire dia. 0.8~1.8mm, from CAT.5~CAT.8.

Length: 118mm

Weight: 18g

Features:

*Ideal for untwist and straighten twisted pair cable.

*Textured quality design.

*Ergonomically designed, suitable for both left and right hands.

*Smooth roller for untwisting easier.

Operation:

Untwist Tool Cable Separator

Untwist Tool Cable Separator

Press Gray / White Color on one side at the same time to straight the wire.

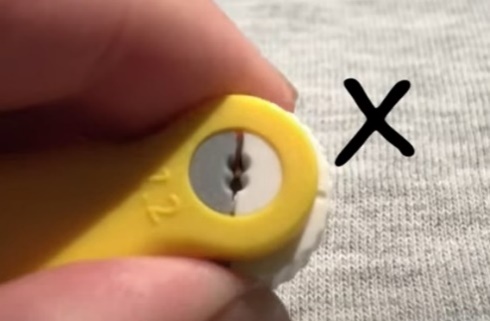

Pressing in the wrong direction.

Untwist Tool Cable Separator

Untwist Tool Cable Separator

Put the twist wires into the distribution holes respectively and then turn the dial to twist the wire.
