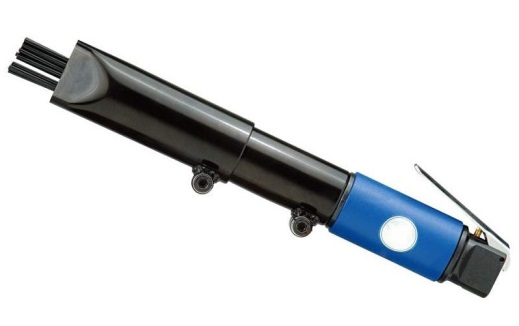

Medium Duty Needle Scaler



Item No.: CH041321-2B

Medium Duty Needle Scaler

Description:

* Superior design with internal spring components provides greater durability.

* Heat treated piston and cylinder ensure excellent durability and long life.

* Removing coatings, corrosion and other accumulated materials.

* Ideal for surface preparation, de-rusting and de-painting.

* Cleaning and stress relieving weld seams and joints.

* Easy convert from needle scaler to chisel scaler.

* Sturdy and simple design for wide application.

* Needle scaler for Industrial applications.

* Adjustable front tube extends needle life.

* Dust shroud attachment available.

* General purpose needle scaler.

Specification:

* Air inlet: 1/4" PT/NPT

* Hose inlet: 3/8” inch.

* Blows per minute: 3700BPM

* Air consumption: 3CFM (85LPM)

* Piston diameter: dia. 23.5 x 70 mm

* Piston stroke: 37.5mm (1.5 inch)

* Overall length: 370mm (14.6 inch)

* Needle diameter: 3 x 180mm

* Needle quantity: 19 pcs

* Net weight: 2.8kg (6.2lb)

* Air pressure: 90 PSI (6.2bar)

* Sound pressure level: 94dBA

* Sound power level: 107dBA

* Vibration level: 17.43 m/sec2
