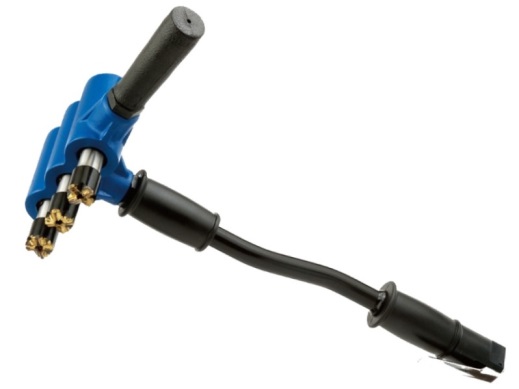

Triple Head Scaling Hammer



Item No.: CH041313-L

Triple Head Scaling Hammer

Feature:

* Detachable taper fit cutter head reduces cost of replacement and extends piston life.

* Removal of rust, coatings, scale from steel structures and surfaces.

* Cleaning of cast iron, steel pipe and bell joints of gas lines.

* Removal of stubborn coatings and mastic residue from floor.

* Alternative tungsten carbide tipped bush hammer piston.

* Reduce vibration improves operator comfort.

* Tungsten carbide tipped cruciform piston.

* Lightweight, easy to handle.

Specification:

* Air inlet: 3/8” PT/NPT

* Hose inlet: 3/8” inch.

* Blow per minute: 2400 BPM

* Air consumption: 7.8 CFM (221LPM)

* Piston diameter: dia. 27 x 69mm

* Piston stroke: 26 mm (1 inch)

* Overall length: 497mm (19.6 inch)

* Weight: 4kg (8.8lb)

* Air pressure: 90 PSI (6.2bar)
