Single Head Scaling Hammer



Item No.:
CH041312

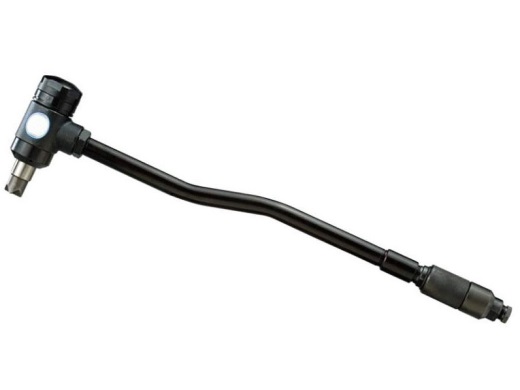

Single Head Scaling Hammer

Feature:

* Detachable taper fit cutter head reduces cost of replacement and extends piston life.

* Removal of rust, coatings, scale from steel structures and surfaces.

* Cleaning of cast iron, steel pipe and bell joints of gas lines.

* Removal of stubborn coatings and mastic residue from floor.

* Alternative tungsten carbide tipped bush hammer piston.

* Reduce vibration improves operator comfort.

* Tungsten carbide tipped cruciform piston.

* Lightweight, easy to handle.

Specification:

* Air inlet: 1/4” PT/NPT

* Hose inlet: 3/8” inch.

* Blow per minute: 7000 BPM

* Air consumption: 3.3 CFM (93LPM)

* Piston diameter: dia. 30 x 80mm

* Piston stroke: 34.7 mm (1.4 inch)

* Overall length: 561mm (22.1 inch)

* Weight: 2.3kg (5.1lb)

* Air pressure: 90 PSI (6.2bar)

* Sound pressure level: 89.1dB

* Sound power level:101.3dB

* Vibration level: 35.1 M/sec2
