Light Duty Needle Scaler



Item No.: CH041307-NS

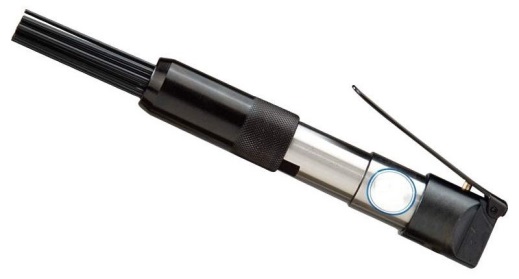

Light Duty Needle Scaler

Description:

* Superior design with internal spring components provides greater durability.

* Heat treated piston and cylinder ensure excellent durability and long life.

* Removing coatings, corrosion and other accumulated materials.

* Ideal for surface preparation, de-rusting and de-painting.

* Cleaning and stress relieving weld seams and joints.

* Easy convert from needle scaler to chisel scaler.

* Sturdy and simple design for wide application.

* Needle scaler for Industrial applications.

* Adjustable front tube extends needle life.

* General purpose needle scaler.

Specification:

* Air inlet: 1/4" PT/NPT

* Hose inlet: 3/8” inch.

* Blows per minute: 5000BPM

* Air consumption: 1.7CFM (48LPM)

* Piston diameter: dia. 18 x 47 mm

* Piston stroke: 28mm (1.1 inch)

* Chisel shank: 11mm (0.433 inch) round

* Overall length: 294mm (11.6 inch)

* Needle diameter: 3 x 125mm

* Needle quantity: 12 pcs

* Net weight: 1.3kg (2.9lb)

* Air pressure: 90 PSI (6.2bar)

* Sound pressure level: 94dBA

* Sound power level: 105dBA

* Vibration level: 9.84 m/sec2
